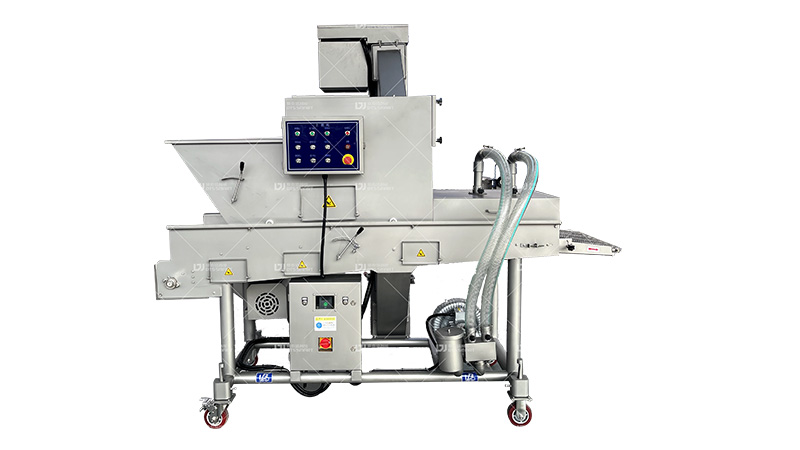

Tunnel type bran feeding machine

1. Description

The DTS-SKJ600 tunnel type bran feeding machine evenly wraps breadcrumbs onto seafood products such as chicken, beef, pork, fish, and shrimp through the breadcrumbs released from the hopper and the breadcrumbs in the bed.

II. Characteristics

The outstanding circulatory system greatly reduces the damage of breadcrumbs;

Not only suitable for debris, but also for coarse debris;

Adopting variable frequency speed regulation, easy to adjust, and convenient for achieving standardized production;

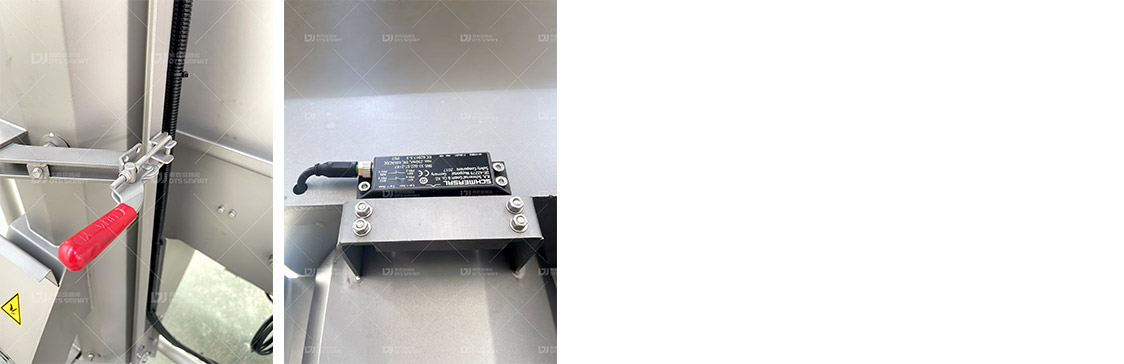

Having reliable safety protection devices;

Using SIEMENS electrical components, safe and reliable;

Can be used in conjunction with molding machines, sizing machines, frying machines, etc. to achieve continuous production;

The whole machine is made of stainless steel, with a novel design, reasonable structure, and reliable performance.

Equipped with digital connectors for network communication.

III. Technical Parameters

Model: DTS-SKJ400, DTS-SKJ600, DTS-SKJ1000;

Conveyor belt speed range: 4~20m/min variable frequency speed regulation;

Input height: 1050+50mm;

Output height: 1050+50mm;

Power: 3.7kW, 4.7kW;

Mesh belt width: 400mm, 600mm, 1000mm;

Dimensions: 2638x856x2240mm, 2638x1056x2240mm, 2638x1456x2240mm
