Introduction
1. Description

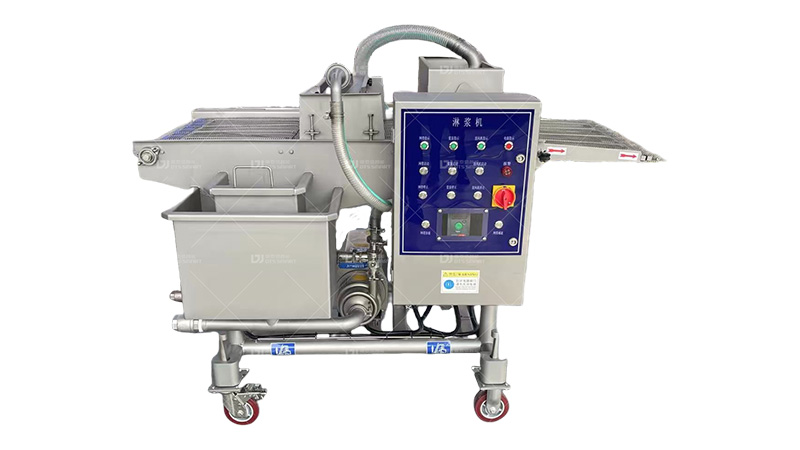

The DTS-LJJ batter machine evenly coats batter onto seafood products such as chicken, beef, pork, fish, shrimp, etc. through a batter curtain and a bottom batter bath. Suitable for the process of wrapping and powder coating on top.
II. Characteristics
Adopting a quick installation design, easy to clean;
The slurry conveying pump has a small shear force on the slurry conveying and a small degree of damage to the viscosity of the slurry;
Easy to adjust and reliable;
Having reliable safety protection devices;
Using SIEMENS electrical components, safe and reliable;
It can be used in conjunction with molding machines, top packaging machines, frying machines, etc. to achieve continuous production;
The whole machine is made of stainless steel, with a novel design, reasonable structure, and reliable performance.
Equipped with digital connectors for network communication.
III. Technical Parameters
Model: DTS-LJJ400, DTS-LJJ600
Conveyor belt speed range: 4~20m/min, variable frequency speed regulation
Input height: 1050 ± 50mm
Output height: 1050 ± 50mm
Power: 2.6kW
Mesh belt width: 400mm/600mm
Dimensions: 1775 × 835 × 1450mm, 1775 × 1035 × 1450mm

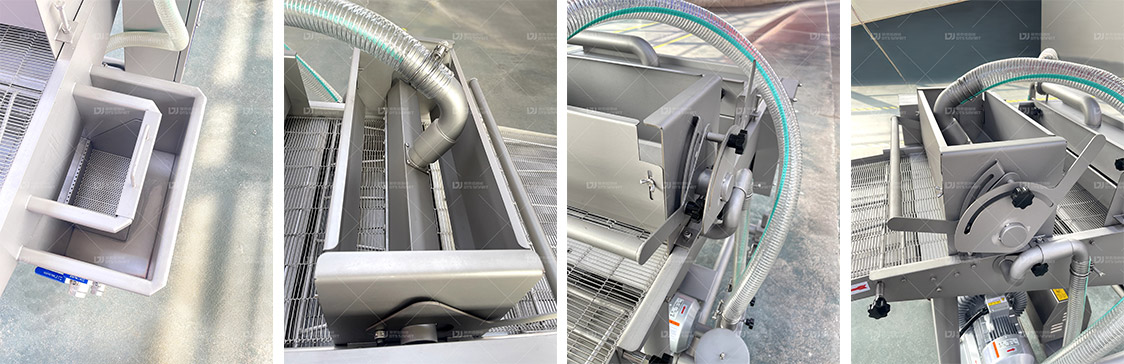

Sample display
